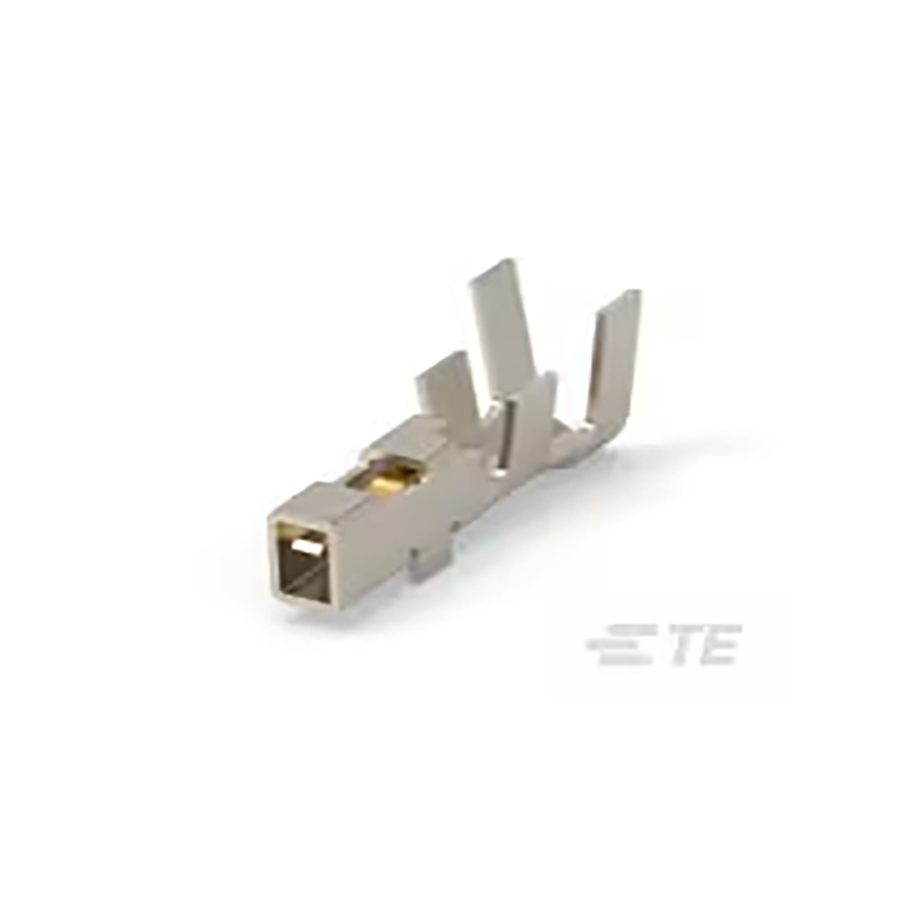

1827572-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1827572-2
Datasheet:
Description:
Headers and Wire Housings Cable Socket Number of Positions:1
| Parameter | Value |
|---|---|
| Length | 8.6 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Height | 3.23 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 2.84 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 125 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | 1 |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Resistance | 20 mΩ |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 2.2098 mm |
| Contact Gender | Female |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Post Length | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 13040
Distributors
pcbx
pcbxUnit Price$0.64720
Ext.Price$0.64720
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64720 | $0.64720 |
| 10 | $0.32360 | $3.23600 |
| 50 | $0.24892 | $12.44600 |
| 100 | $0.19148 | $19.14800 |
| 500 | $0.16896 | $84.48000 |
| 1000 | $0.14909 | $149.09000 |
| 3000 | $0.13824 | $414.72000 |
| 5000 | $0.12818 | $640.90000 |
| 10000 | $0.11885 | $1188.50000 |
| 30000 | $0.11020 | $3306.00000 |
| 50000 | $0.10218 | $5109.00000 |
| 100000 | $0.09474 | $9474.00000 |
